Name: PowerEdge R570
Brand: Dell
SKU: PE-R570
Availability: InStock

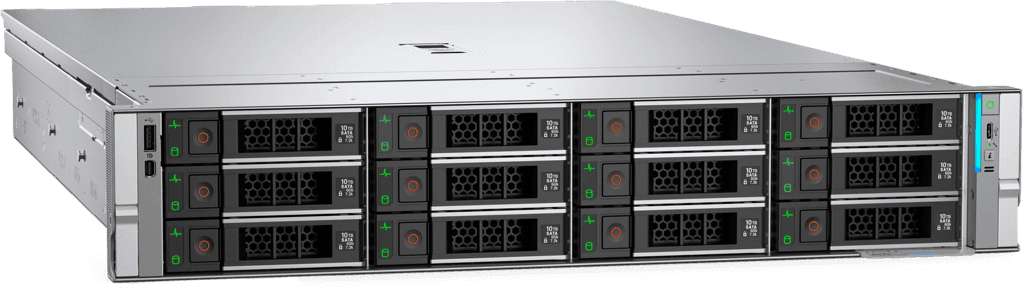

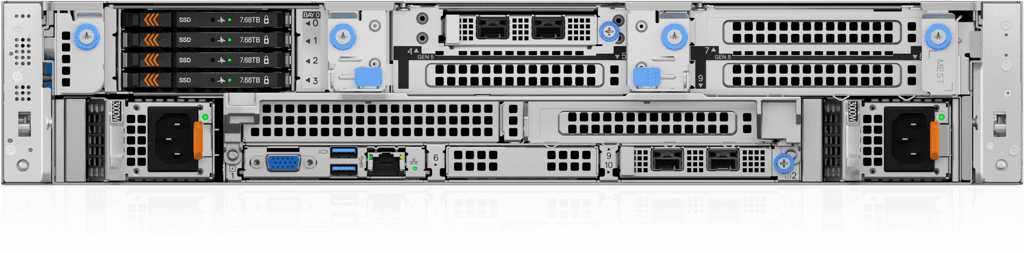

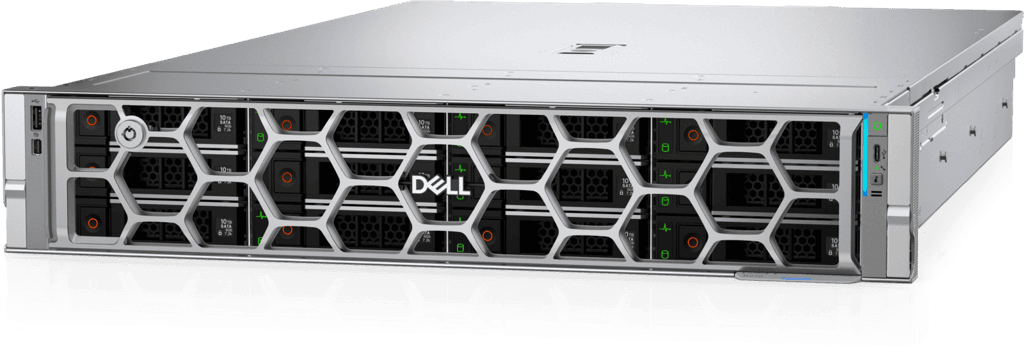

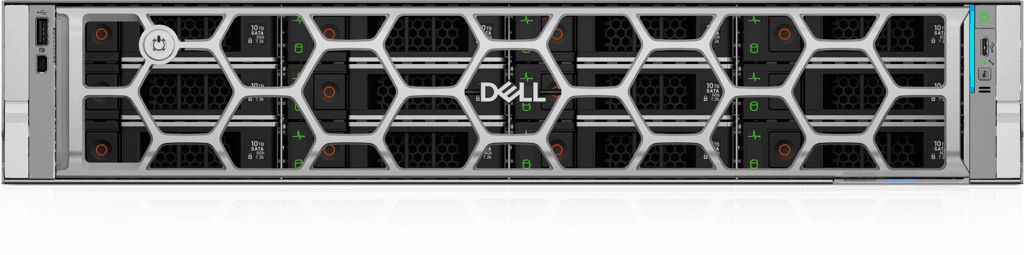

PowerEdge R570 es un Servidor rack de montaje en gabinete en formato 2U de generación 17G de la línea enterprise de Dell Technologies. The Dell PowerEdge R570 is a 2U, one-socket rack server engineered for high-performance computing with exceptional power efficiency and balanced performance.

Base	PowerEdge R570 Server, Enterprise
vSAN Storage Architecture	None
Chassis Configuration	No HD, No Backplane
Processor	Intel® Xeon® 6 Efficient 6710E 2.4G, 64C/64T, 24GT/s, 96M Cache, Turbo, (205W) DDR5-5600
Thermal Configuration	Heatsink for 1 CPU Configuration (CPU less than or equal to 185W)
Memory Configuration Type	Performance Optimized
Memory DIMM Type and Speed	6400MT/s RDIMMs
Memory *	16GB RDIMM 6400Mt/s, Single Rank No longer available
RAID Configuration	C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
RAID/Internal Storage Controllers	PERC H365i Controller, Front, DCMHS
Storage	3.84TB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD
Hard Drives (PCIe SSD/Flex Bay)	DELL PLUS NO (available with standard software image only)
Fans	PowerEdge Sirocco Fan - Non-DW GPU, Non-3.5" Config, Non-32xE3 Config
Power Supply	Dual, Fault Tolerant Redundant(1+1), Hot-Plug MHS Power Supply, 800W MM(100-240Vac) Titanium
PCIe Riser	Riser Config 1, Hot Aisle, Rear Full Height 4x16 FH (Gen5), 1x16 FLOP OCP, 1x16 Onboard OCP
Motherboard	PowerEdge R570 Motherboard, ROW
OCP 3.0 Network Adapters	No OCP Card, No Primary MAC Address
Additional Network Cards	Broadcom 57414 25GbE SFP28 Dual Port Adapter, PCIe Full Height +Sec
