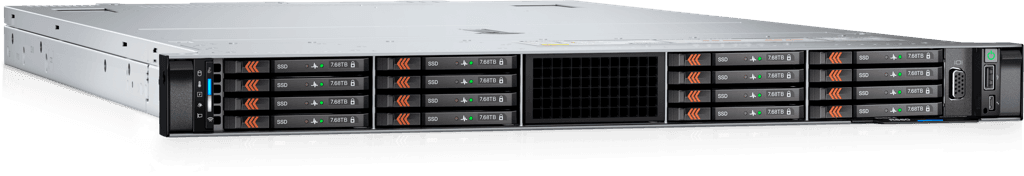

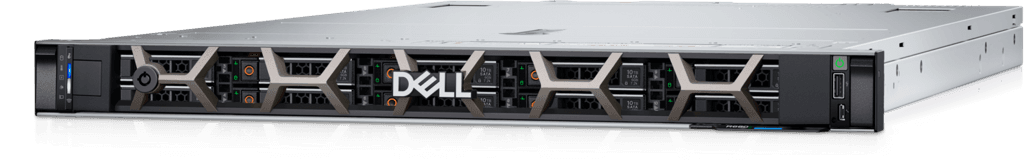

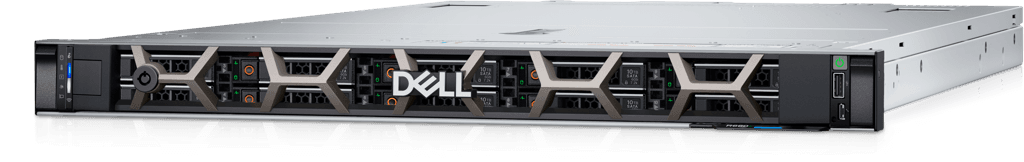

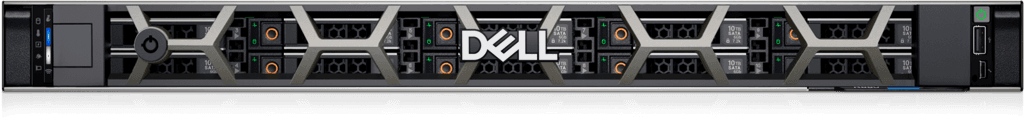

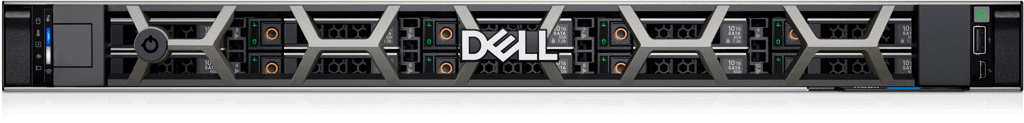

Name: PowerEdge R660
Brand: Dell
SKU: PE-R660
Availability: InStock

PowerEdge R660 es un Servidor rack de montaje en gabinete en formato 1U de generación 17G de la línea enterprise de Dell Technologies. The Dell PowerEdge R660 is a 1U, two-socket server designed to optimize demanding workloads like dense database analytics and high-density virtualization.

Base	PowerEdge R660 Server
Chassis Certifications	None
Chassis Configuration	No HD, No Backplane, 1CPU
Processor	Intel® Xeon® Platinum 8452Y 2G, 36C/72T, 16GT/s, 67.5M Cache, Turbo, HT (300W) DDR5-4800
Additional Processor	No Additional Processor
Additional Processor Features	No HBM
Processor Thermal Configuration	Performance Heatsink for 1 CPU configuration (CPU more than or equal to 250W)
Memory Configuration Type	Performance Optimized
Memory DIMM Type and Speed	5600MT/s RDIMMs
Memory *	16GB RDIMM 6400Mt/s, Single Rank No longer available
RAID Configuration	C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
RAID/Internal Storage Controllers	PERC H755 with rear load Brackets
Storage	7.68TB SSD SAS Read Intensive up to 24Gbps 512e 2.5in Hot-Plug 1DWPD , AG Drive
Fans	4 Very High Performance Fans
Power Supply	Dual, (1+1) FTR, Hot-Plug PSU, 700W MM HLAC (200-240V ONLY, not for 100-120V outlet) Titanium
PCIe Riser	Riser Config 4, Low Profile, 2x8 LP Slots (Gen5) + 1x16 LP Slot (Gen4), 1CPU
OCP 3.0 Network Adapters	No OCP 3.0 mezzanine NIC card, Blank Filler Only
Additional Network Cards	Broadcom 5720 Dual Port 1GbE LOM
