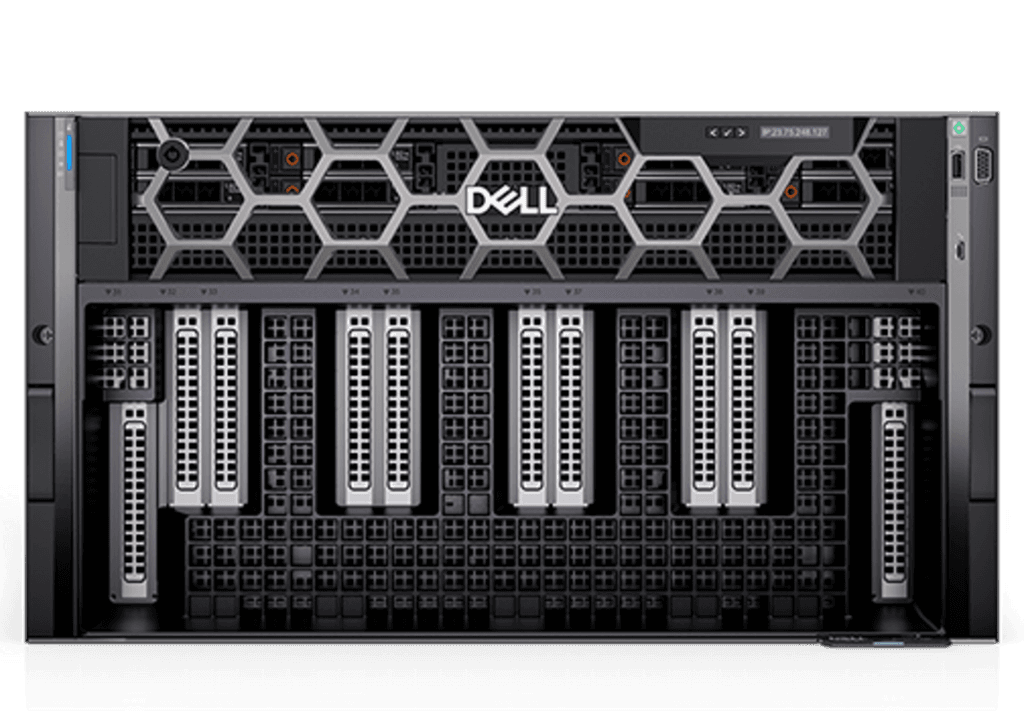

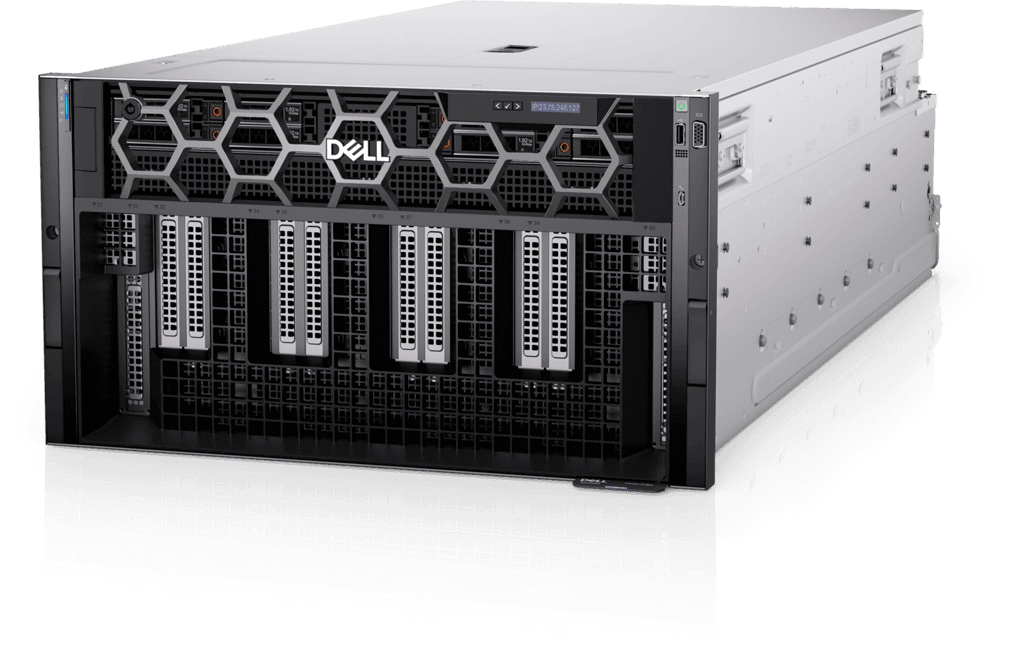

PowerEdge XE9680

PowerEdge XE9680 es un Servidor optimizado para cargas de trabajo de IA y GPU en formato 6U de generación 17G de la línea enterprise de Dell Technologies.

Processor	Two 5th Generation Intel ® Xeon ® Scalable processors with up to 64 cores per processor Two 4th Generation Intel ® Xeon ® Scalable processors with up to 56 cores per processor
Operating System	Canonical ® Ubuntu ® Server LTS Red Hat ® Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Accelerators	8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 AMD Insti
Memory	DIMM Speed Up to 5600 MT/s on the 5th Generation Intel ® Xeon ® Scalable processors Up to 4800 MT/s on the 4th Generation Intel ® Xeon ® Scalable processors Memory Type RDIMM Memory Module Slots 32 DD
Storage	Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB Up to 16 x E3.S NVMe direct drives max 122.88 TB Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.
Storage Controllers	Internal Controllers PERC H965i (Not supported with Intel Gaudi3) Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trus
Management	Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage
Ports	Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet
Slots	PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3)
Bezel	Optional LCD bezel or security bezel
Recommended Support	Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Conta

MarcaDell

ProcesadorTwo 5th Generation Intel ® Xeon ® Scalable processors with up to 64 cores per processor Two 4th Generation Intel ® Xeon ® Scalable processors with up to 56 cores per processor

Tipo de DiscoUniversal (SAS/SATA/NVMe)

Línea / Serie de ServidorPowerEdge

Tipo de ServidorServidor AI/GPU

Factor de Forma6U

Generación17G

Sockets de CPU2 Sockets

Soporte GPU / AceleradorSí

ModeloPowerEdge XE9680

MemoriaDIMM Speed Up to 5600 MT/s on the 5th Generation Intel ® Xeon ® Scalable processors Up to 4800 MT/s on the 4th Generation Intel ® Xeon ® Scalable processors Memory Type RDIMM Memory Module Slots 32 D…

AlmacenamientoFront Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB Up to 16 x E3.S NVMe direct drives max 122.88 TB Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.

Controlador de AlmacenamientoInternal Controllers PERC H965i (Not supported with Intel Gaudi3) Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs

PuertosNetwork Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet…

Slots PCIePCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3)

GPU / Aceleradores8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 AMD Inst…

SeguridadCryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Tru…

Gestión RemotaEmbedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManag…

Sistema Operativo SoportadoCanonical ® Ubuntu ® Server LTS Red Hat ® Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Soporte y GarantíaChoose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Cont…

URL DatasheetDescargar Datasheet

URL ProductoVer enlace
