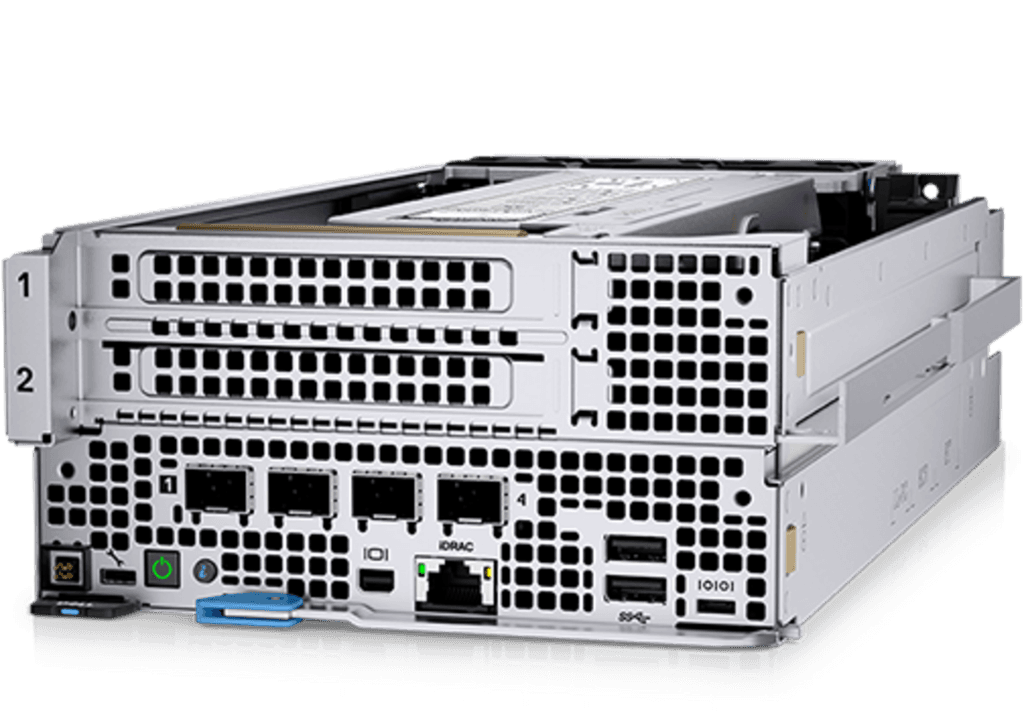

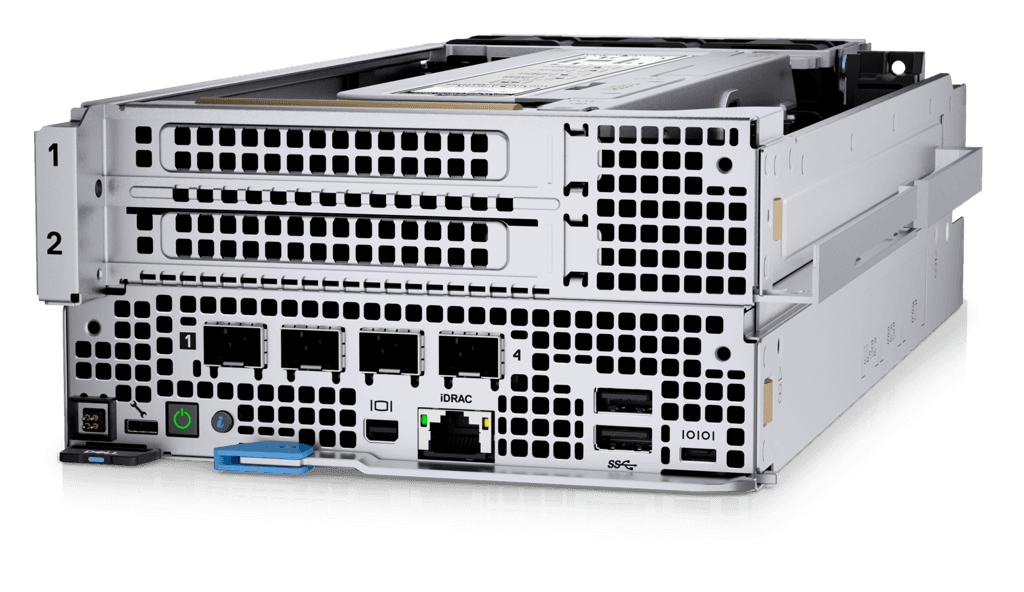

PowerEdge XR4520c

PowerEdge XR4520c es un Servidor ruggedizado para entornos de borde (edge) en formato 2U de generación 16G de la línea enterprise de Dell Technologies.

Processor	1 x 3rd Generation Intel ® Xeon ® D Scalable processor with up to 20 cores
Operating System	Canonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V Red Hat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®
Accelerators	Up to 2 x 150W single-width GPU / 1 x 250W double-width GPU
Memory	DIMM Speed Up to 2933 MT/s Memory Type RDIMM and LRDIMM Memory Module Slots 4 x DDR4 DIMM slots Maximum RAM Supports RDIMM 256 GB max, LRDIMM 512 GB max
Storage	8 x M.2 NVMe SSDs on PCIe Add-in card 4 x M.2 NVMe SSDs on M.2 riser module
Storage Controllers	Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management	Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Upd
Ports	Network Options 4 x 25GbE SFP (max 100 Gb) 4 x 10GbE SFP (max 50 Gb) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port Int
Slots	PCIe 2 x16 Gen4 (x16 connector) full height, full length
Chassis	XR4000r and XR4000z
Bezel	Security bezel on XR4000r and XR4000z
Recommended Support	Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more inform

MarcaDell

Procesador1 x 3rd Generation Intel ® Xeon ® D Scalable processor with up to 20 cores

Cantidad de RAM256GB

Tipo de DiscoSSD NVMe

Línea / Serie de ServidorPowerEdge

Tipo de ServidorServidor Edge

Factor de Forma2U

Generación16G

Sockets de CPU1 Socket

Soporte GPU / AceleradorSí

ModeloPowerEdge XR4520c

MemoriaDIMM Speed Up to 2933 MT/s Memory Type RDIMM and LRDIMM Memory Module Slots 4 x DDR4 DIMM slots Maximum RAM Supports RDIMM 256 GB max, LRDIMM 512 GB max

Almacenamiento8 x M.2 NVMe SSDs on PCIe Add-in card 4 x M.2 NVMe SSDs on M.2 riser module

Controlador de AlmacenamientoInternal Boot Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB

PuertosNetwork Options 4 x 25GbE SFP (max 100 Gb) 4 x 10GbE SFP (max 50 Gb) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port In…

Slots PCIePCIe 2 x16 Gen4 (x16 connector) full height, full length

GPU / AceleradoresUp to 2 x 150W single-width GPU / 1 x 250W double-width GPU

ChasisXR4000r and XR4000z

SeguridadCryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Gestión RemotaEmbedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Up…

Sistema Operativo SoportadoCanonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V Red Hat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®

Soporte y GarantíaChoose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more infor…

URL DatasheetDescargar Datasheet

URL ProductoVer enlace
