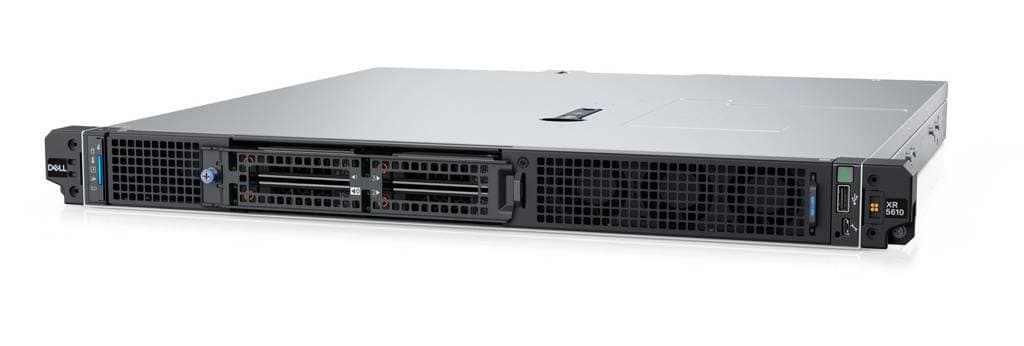

PowerEdge XR5610

PowerEdge XR5610 es un Servidor ruggedizado para entornos de borde (edge) en formato 1U de generación 16G de la línea enterprise de Dell Technologies.

Processor	One 4th Generation Intel ® Xeon ® Scalable processor with up to 32 cores per processor
Operating System	Canonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V RedHat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®
Accelerators	Up to 2 x 75 W (single-width, full-height, half-length)
Memory	DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots Eight DDR5 DIMM slots with ECC Maximum RAM RDIMM 1 TB max
Storage	Front Bays Up to 4 x 2.5-inch SATA, SAS, or NVMe SSD max 30.72 TB
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H355, HBA355i External Controllers HBA355e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trus
Management	Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMwa
Ports	Network Options 1 x OCP 3.0 (optional) 4 x 25 GbE SFP+ LOM Front Ports Rear Accessed Configuration 1 x iDRAC Direct (Micro-AB USB 2.0) port 1 x USB 2.0 Front Accessed Configuration 1 x iDRAC Direct (M
Slots	PCIe Up to 2 PCIe slots (2 x16 Gen5) Video Card N/A Bezel Optional bezel or security bezel with dust filter
Rack Support	Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 - 750 mm. These rails also support optional CMA and SRB for 2-post racks. Sliding, stab-in rails for ru
Recommended Support	Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Conta

MarcaDell

ProcesadorOne 4th Generation Intel ® Xeon ® Scalable processor with up to 32 cores per processor

Tipo de DiscoUniversal (SAS/SATA/NVMe)

Línea / Serie de ServidorPowerEdge

Tipo de ServidorServidor Edge

Factor de Forma1U

Generación16G

Sockets de CPU1 Socket

Soporte GPU / AceleradorSí

ModeloPowerEdge XR5610

MemoriaDIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots Eight DDR5 DIMM slots with ECC Maximum RAM RDIMM 1 TB max

AlmacenamientoFront Bays Up to 4 x 2.5-inch SATA, SAS, or NVMe SSD max 30.72 TB

Controlador de AlmacenamientoInternal Controllers PERC H965i, PERC H755, PERC H355, HBA355i External Controllers HBA355e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs

PuertosNetwork Options 1 x OCP 3.0 (optional) 4 x 25 GbE SFP+ LOM Front Ports Rear Accessed Configuration 1 x iDRAC Direct (Micro-AB USB 2.0) port 1 x USB 2.0 Front Accessed Configuration 1 x iDRAC Direct (…

Slots PCIePCIe Up to 2 PCIe slots (2 x16 Gen5) Video Card N/A Bezel Optional bezel or security bezel with dust filter

GPU / AceleradoresUp to 2 x 75 W (single-width, full-height, half-length)

SeguridadCryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Tru…

Gestión RemotaEmbedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMw…

Sistema Operativo SoportadoCanonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V RedHat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®

Soporte y GarantíaChoose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Cont…

URL DatasheetDescargar Datasheet

URL ProductoVer enlace
