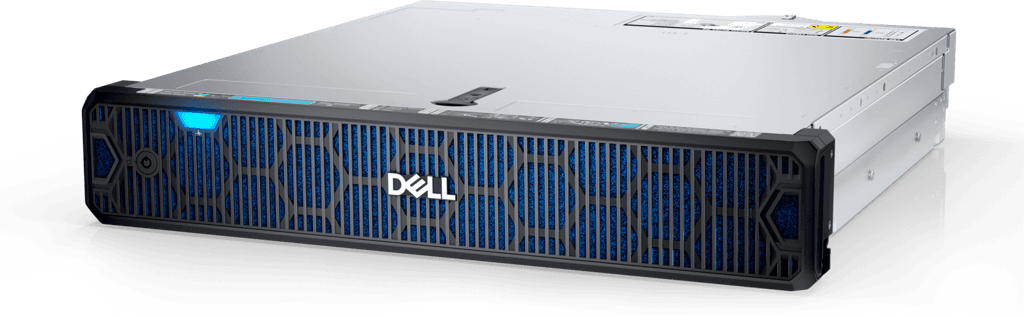

PowerEdge XR7620

PowerEdge XR7620 es un Servidor ruggedizado para entornos de borde (edge) en formato 2U de generación 16G de la línea enterprise de Dell Technologies.

Processor	Two 4th Generation Intel ® Xeon ® Scalable processors with up to 32 cores per processor
Operating System	Canonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V RedHat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®
Accelerators	Up to 4 x 150 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length)
Memory	DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM RDIMM 1 TB max
Storage	Front Bays Up to 8 x E3.S NVMe direct drives, 51.2 TB max Up to 4 x 2.5-inch SAS/SATA or NVMe SSD drives, 61.44 TB max
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H355, HBA355i External Controllers N/A Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs Interna
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trus
Management	Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage
Ports	Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM Front Ports Rear Accessed Configuration 1 x iDRAC Direct (Micro-AB USB 2.0) port 1 x USB 2.0 Front Accessed Configuration 2 x USB 2.0 1 x iDRAC dedi
Slots	PCIe 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) Video Card 1 x VGA Bezel Optional security bezel with dust filter (Dust sensor is available only for Front Accessed configura
Rack Support	Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 - 750 mm. These rails also support optional CMA and SRB for 2-post racks. Sliding, stab-in rails for ru
Recommended Support	Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Conta

MarcaDell

ProcesadorTwo 4th Generation Intel ® Xeon ® Scalable processors with up to 32 cores per processor

Tipo de DiscoUniversal (SAS/SATA/NVMe)

Línea / Serie de ServidorPowerEdge

Tipo de ServidorServidor Edge

Factor de Forma2U

Generación16G

Sockets de CPU2 Sockets

Soporte GPU / AceleradorSí

ModeloPowerEdge XR7620

MemoriaDIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM RDIMM 1 TB max

AlmacenamientoFront Bays Up to 8 x E3.S NVMe direct drives, 51.2 TB max Up to 4 x 2.5-inch SAS/SATA or NVMe SSD drives, 61.44 TB max

Controlador de AlmacenamientoInternal Controllers PERC H965i, PERC H755, PERC H355, HBA355i External Controllers N/A Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs Intern…

PuertosNetwork Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM Front Ports Rear Accessed Configuration 1 x iDRAC Direct (Micro-AB USB 2.0) port 1 x USB 2.0 Front Accessed Configuration 2 x USB 2.0 1 x iDRAC ded…

Slots PCIePCIe 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) Video Card 1 x VGA Bezel Optional security bezel with dust filter (Dust sensor is available only for Front Accessed configur…

GPU / AceleradoresUp to 4 x 150 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length)

SeguridadCryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Tru…

Gestión RemotaEmbedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManag…

Sistema Operativo SoportadoCanonical ® Ubuntu ® Server LTS Microsoft ® Windows Server ® with Hyper-V RedHat ® Enterprise Linux SUSE ® Linux Enterprise Server VMware ® ESXi ®

Soporte y GarantíaChoose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Cont…

URL DatasheetDescargar Datasheet

URL ProductoVer enlace
